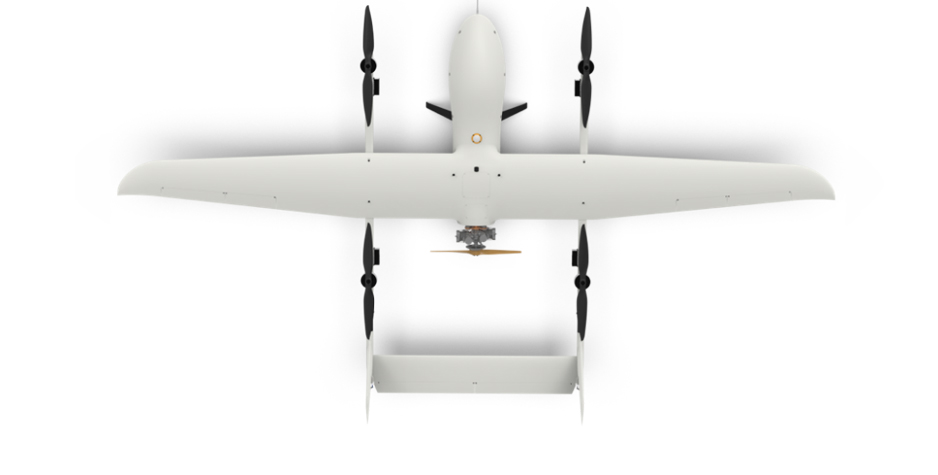

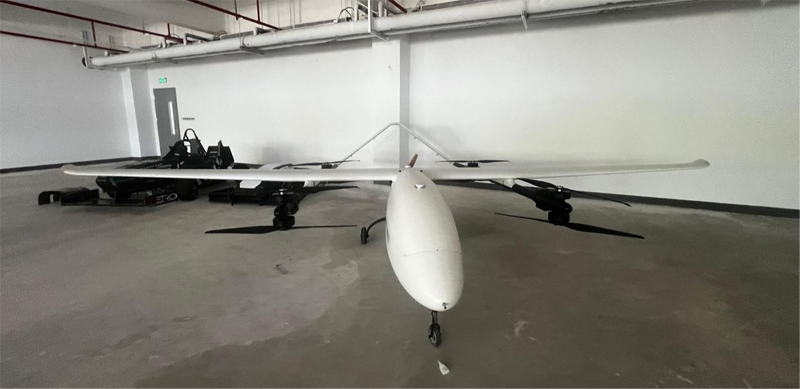

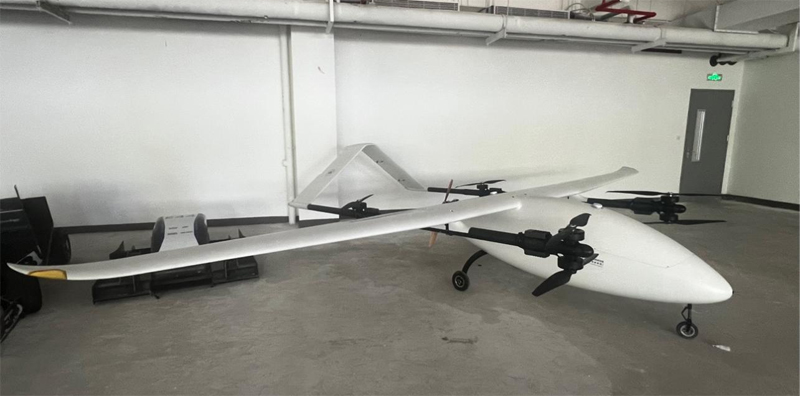

The NCWVT-140 high payload vertical takeoff and landing fixed wing unmanned aerial vehicle system is a multi module multi-purpose unmanned aerial vehicle product with vertical takeoff and landing and high payload capabilities. It has the advantages of high payload, long endurance, modularity, high reliability, and rapid deployment. Adopting a dual tail strut H-tail layout and a rear push power design. The maximum payload that can be carried is 30kg, and the external mount can carry a maximum airdrop payload of 24kg. Multiple task payloads can be carried according to user needs to meet the requirements of multitasking operations.
Composite wing unmanned aerial vehicles have stable operational capabilities in real-time monitoring of disaster sites, rapid 3D modeling of target areas, emergency communication and private network construction in disaster areas, forest fire warning, and other businesses. They can enhance emergency capabilities in comprehensive risk monitoring and warning, command and dispatch, natural disaster data aggregation, and support and guarantee.

Specifications:
A)Wingspan ：6.30m
B)Overall length: 3.56m
C)Service ceiling：5500m
D)Endurance:≥5h（Task load:30kg ）
E)Cruising speed：100～130km/h
F)Controlling Distance：50/100km
G)Maximum speed：160km/h
H)Ambient temperature：-20°C~+55°C
I)Maximum paylaod : 30kg
J)Wind resistance：①Take-off and land: fresh breeze ②Cruise：moderate gale
K)Maximum take-off weight:140kg
L)Take-off and landing: vertical take-off and landing
